Collection: CS SERIES – Compact coaxial loudspeaker systems
The CS series from YME Audiotechnik consists of ultra‑compact coaxial loudspeaker systems, perfect for discreet and flexible installations where detailed intelligibility and even coverage are essential. Thanks to their small size, multiple mounting options and several colour finishes, CS systems integrate seamlessly into museums, galleries, theatres, restaurants, educational and religious venues. They provide high‑quality background sound, multi‑room systems or immersive projects, and in combination with dedicated subwoofers deliver full, controlled low‑frequency performance even in the most compact spaces.
Series elements and subwoofer Click to expand

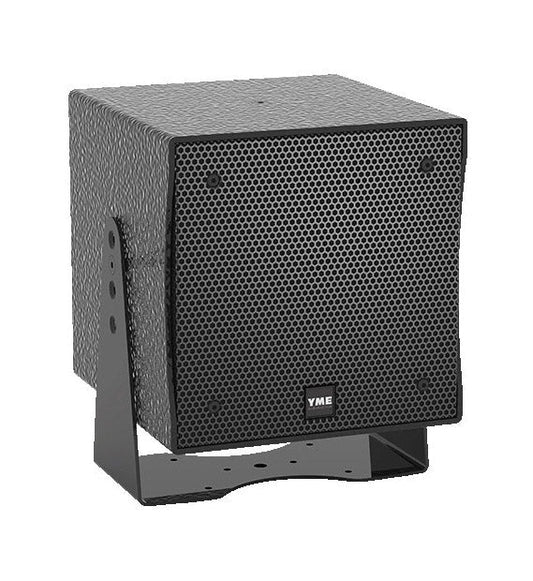

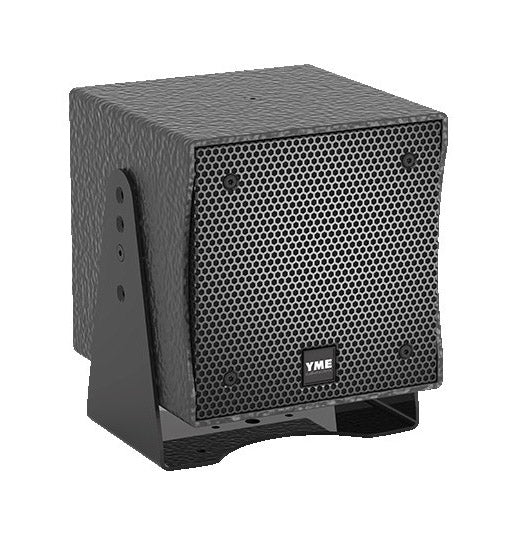

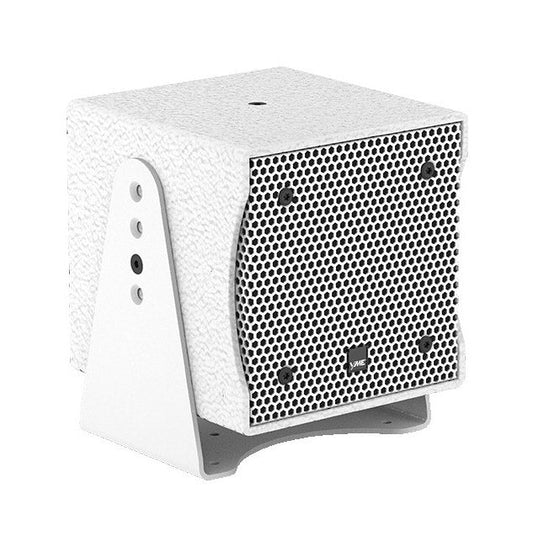

| Parameter | CS 5P | CS 7P | CS 9P | CS 212B |
|---|---|---|---|---|
| Drivers | 1 × 5″, 1 × 1″ (coaxial) | 1 × 7″, 1 × 1.5″ (coaxial) | 1 × 9″, 1 × 1.5″ (coaxial) | 2 × 12″ |
| SPL (dB) | 115 dB | 117 dB | 121 dB | 129 dB |
| Power | 100 W | 200 W | 400 W | 800 W |
| Impedance | 16 Ω | 8 Ω | 8 Ω | 4 Ω |
| Connection | Full Range | Full Range | Full Range | Full Range |
| Dispersion | 110° × 110° | 110° × 110° | 110° × 110° | Omni |
| Acoustic design | Coaxial | Coaxial | Coaxial | Bass‑reflex |
Recommended amplification Click to expand
| Model | Connection diagram |
|---|---|
| CS 5P |
|
| CS 7P |
|
| CS 9P |
|
| CS 212B |
|
*Calculated for a 4-Ω cluster under parallel connection
**To obtain a preset for your system, contact your manager and send the specification
CS offers ultra‑compact yet stylish loudspeaker systems designed for those who demand excellent sound quality alongside elegance and minimalism. Their unobtrusive design fits easily into any interior, while the powerful and detailed sound turns every space into a vibrant sonic environment. CS strikes an ideal balance between aesthetics and professional output, making it a reliable and versatile choice for discerning audiophiles and installers.
Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
-

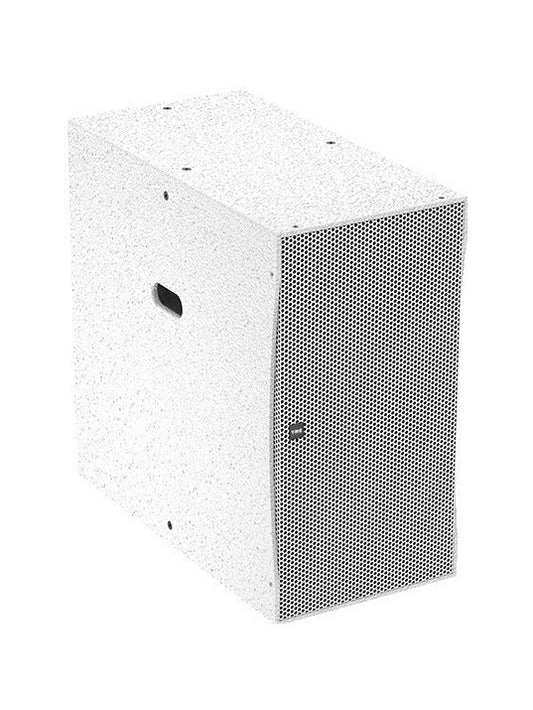

YME CS 212B
Subwoofer 2×12", 129 dB, 800W, 4Ω
