iP SERIES – Passive point source speakers

YME iP Series – Passive Point Source Systems

The iP series from YME Audiotechnik comprises versatile compact acoustic systems ideal for club, restaurant, corporate and educational sound reinforcement, as well as use as front‑fills, infills or stage monitors. Thanks to easy integration, flexible mounting options and rapid setup, iP provides high‑quality, clean sound for small and mid‑sized spaces. It enables discreet installations in public and commercial areas, and mobile solutions for events of any size where extra comfort and technological reliability are critical.

Series elements Click to expand

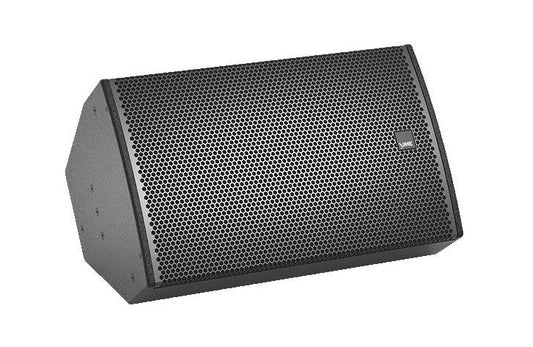

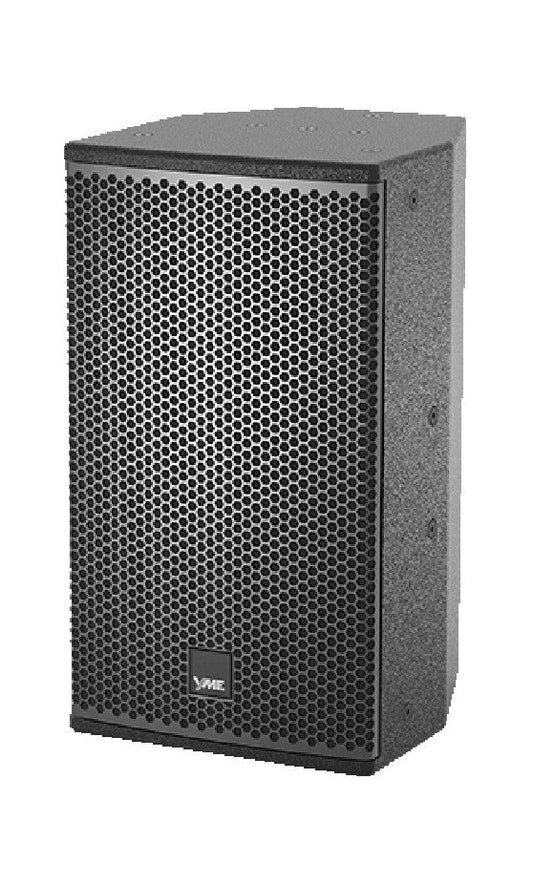

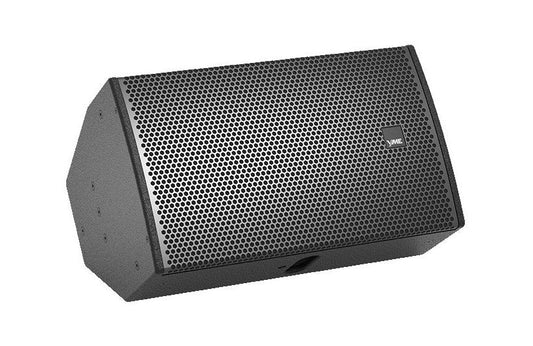

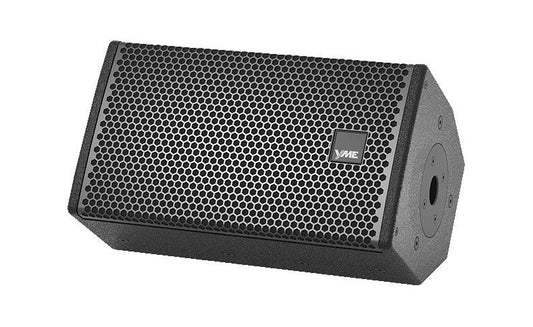

Parameter iP 8 iP 10 iP 12 iP 15
Drivers 1 × 8″, 1 × 1.75″ 1 × 10″, 1 × 1.75″ 1 × 12″, 1 × 1.75″ 1 × 15″, 1 × 3″
SPL (dB) 116 dB 121 dB 122 dB 124 dB
Power 200 W 350 W 450 W 450 W
Impedance 8 Ω 8 Ω 8 Ω 8 Ω
Connection Full Range Full Range Full Range Full Range
Dispersion 80° × 50° 80° × 50° 80° × 50° 80° × 50°
Compatible frames for flying and ground‑stacking
  • YME RG‑iP 8 – flying frame for the loudspeaker
  • M10 pole cup – for mounting on a stand or on iP 15B/18B subwoofers
  • Angled wedge for use as a monitor
  • YME RG‑iP 10 – flying frame for the loudspeaker
  • M10 pole cup – for mounting on a stand or on iP 15B/18B subwoofers
  • Angled wedge for use as a monitor

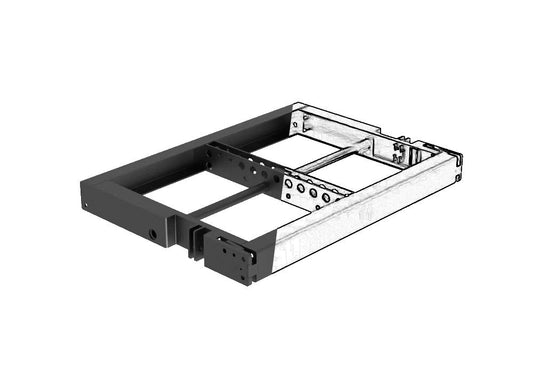

  • YME RG‑iP 12 – flying frame for the loudspeaker
  • M10 pole cup – for mounting on a stand or on iP 15B/18B subwoofers
  • Angled wedge for use as a monitor
  • YME RG‑iP 15 – flying frame for the loudspeaker
  • M10 pole cup – for mounting on a stand or on iP 15B/18B subwoofers
  • Angled wedge for use as a monitor
Subwoofers Click to expand

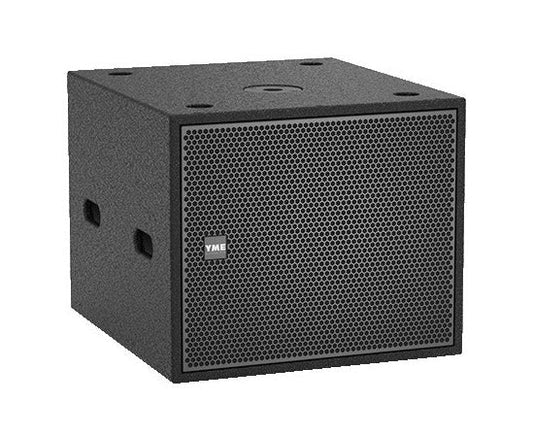

Parameter iP 15B iP 18B
Drivers 1 × 15″ 1 × 18″
SPL (dB) 128 dB 130 dB
Power 700 W 800 W
Impedance 8 Ω 8 Ω
Connection Full Range Full Range
Dispersion Omni Omni
Acoustic design Bass‑reflex Bass‑reflex
Compatible frames for flying and ground‑stacking
  • Not designed for flying
  • M10 pole cup – for mounting on a stand with iP 8/iP 10/iP 12/iP 15
  • Not designed for flying
  • M10 pole cup – for mounting on a stand with iP 8/iP 10/iP 12/iP 15
Recommended amplification Click to expand
Model Connection diagram
IP 8 IP 8 connection diagram
IP 10 IP 10 connection diagram
IP 12 IP 12 connection diagram
IP 15 IP 15 connection diagram
IP 15B IP 15B connection diagram
IP 18B IP 18B connection diagram

*Calculated for a 4-Ω cluster under parallel connection
**To obtain a preset for your system, contact your manager and send the specification

iP systems provide ultra‑compact, stylish acoustic solutions for those who value superior sound quality together with elegance and minimalism. Their unobtrusive design fits easily into any interior, while the powerful and detailed sound turns each space into a living audio environment. iP strikes an ideal balance between aesthetics and professional output, making it a reliable and versatile choice for discerning audiophiles and installers.

Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
