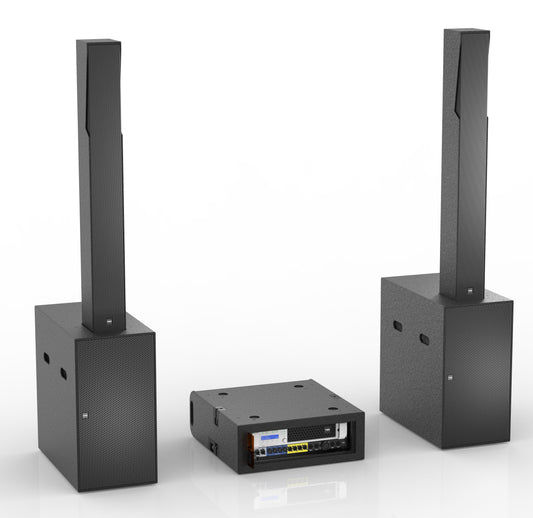

LUNA SERIES – Column loudspeaker systems



The LUNA series from YME Audiotechnik features elegant yet powerful column line-array systems ideal for corporate events, premium presentations, retail and exhibition spaces, and integration into modern club, house‑of‑worship and theatre interiors. With a minimal visual footprint, high sound quality and wide coverage radius, LUNA delivers clear speech, musical precision and a cosy ambience for both large and exclusive events, combining aesthetics with advanced control technology and quick installation.

LUNA embodies elegance and a modern approach to sound, where style meets technology. The system provides clean, expressive audio, harmonizing atmosphere with unobtrusive visual presence. LUNA integrates easily into any interior and helps create a special mood, letting each event sound fresh and remain memorable.

Series elements and subwoofers Click to expand

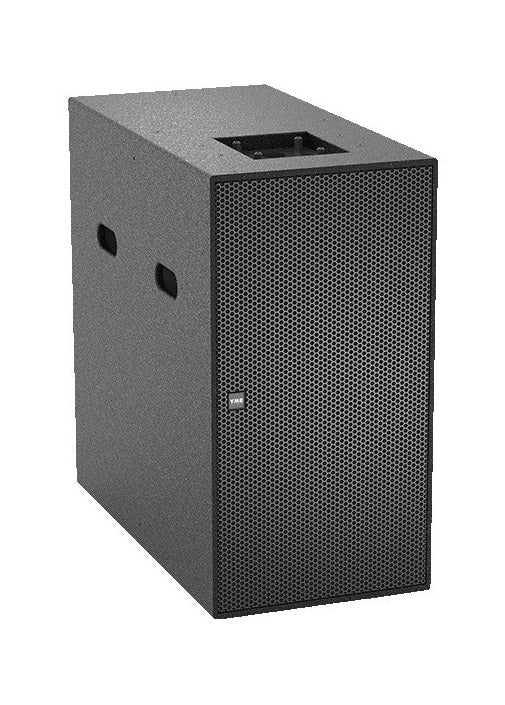

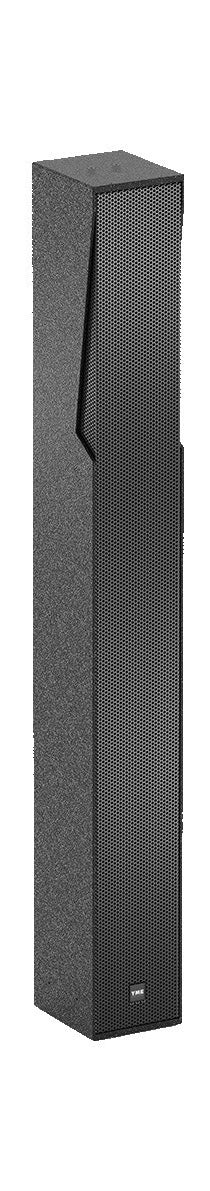

Parameter L 5 L SUB L SUBA
Drivers 6 × 5″, 3 × 1.75″ 2 × 12″ 2 × 12″
SPL (dB) 127 dB 131 dB 131 dB
Power 720 W 800 W 800 W
Impedance 8 Ω 8 Ω 4 Ω
Connection Full Range Full Range Full Range
Dispersion 140° × 25° Omni Omni
Acoustic design Bass‑reflex Bass‑reflex Bass‑reflex
Recommended amplification Click to expand
Model Connection diagram
L 5 L 5 connection diagram
L SUB L SUB connection diagram
L SUBA L SUBA connection diagram

*To obtain a preset for your system, contact your manager and send the specification

Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.

Download full LUNA Series catalogue

Download PDF
