NANO SERIES – Compact coaxial line arrays



The NANO series from YME Audiotechnik offers compact, lightweight acoustic systems ideal for mobile installations, corporate and educational events, conferences, presentations and small concerts or club performances. Thanks to a coaxial line‑array design and well‑thought‑out transport and rigging solutions, NANO ensures rapid deployment, high speech intelligibility and balanced sound even in confined spaces, while remaining a professional solution for dynamic rental and installation tasks.

Line array elements and subwoofer Click to expand

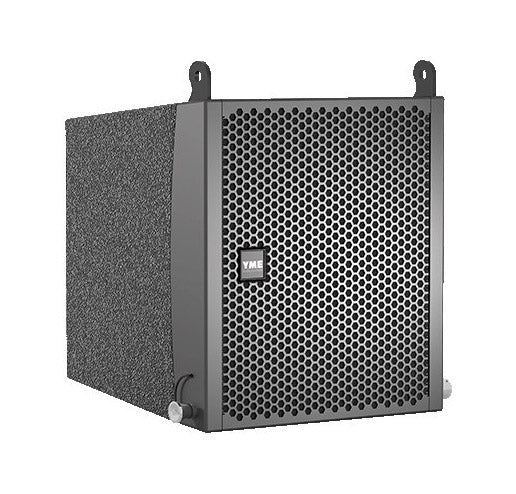

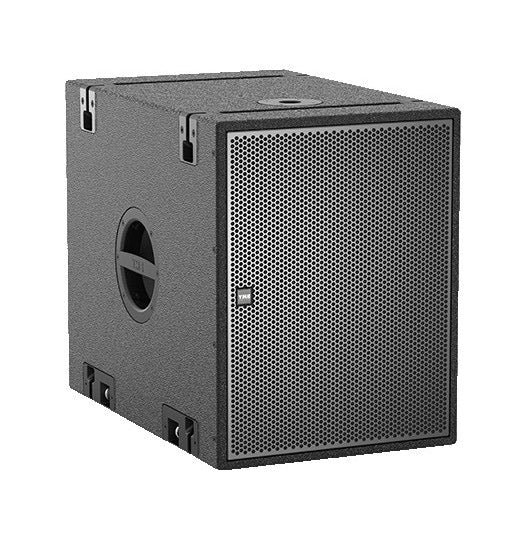

Parameter N 9 N 15B N 15BA+
Drivers 1 × 9″, 1 × 3″ 1 × 15″ 1 × 15″
SPL (dB) 128 dB 124 dB 124 dB
Power 500 W 700 W 700 W
Impedance 16 Ω 8 Ω 8 Ω
Connection Bi‑amp Full Range Full Range
Dispersion 100° × 10° Omni Omni
Acoustic design Coaxial bass‑reflex Bass‑reflex Bass‑reflex
Compatible frames for flying and ground‑stacking

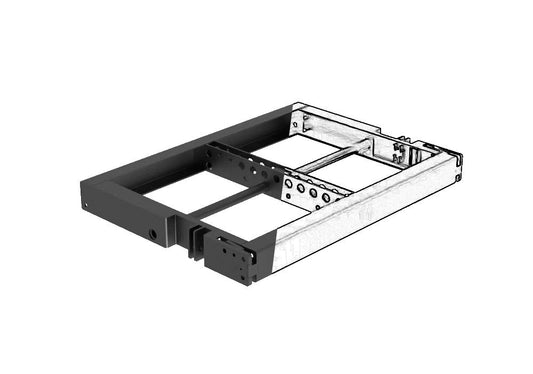

  • YME RG‑NANO – flying frame without subwoofers
  • YME RG‑NANO – ground stack with N 15B/N 15BA+
  • YME ZCG‑480 (2 pcs) + YME RG‑NANO (1 pc) – stand mount
 Not designed for flying Not designed for flying
Recommended amplification for passive version Click to expand
Model Connection diagram
N 9 N 9 connection diagram
N 15B N 15B connection diagram
N 15BA+ N 15BA+ connection diagram

*Calculated for a 4-Ω cluster under parallel connection
**To obtain a preset for your system, contact your manager and send the specification

NANO is crafted for those who value freedom, style and simplicity. These compact systems combine professional sound quality with true mobility, allowing you to create a musical atmosphere wherever it matters most. NANO offers ease of use and immediate immersion into vibrant sonic emotions, making every event special and memorable.

Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
