VP SERIES – Coaxial point source speakers with rotatable horn

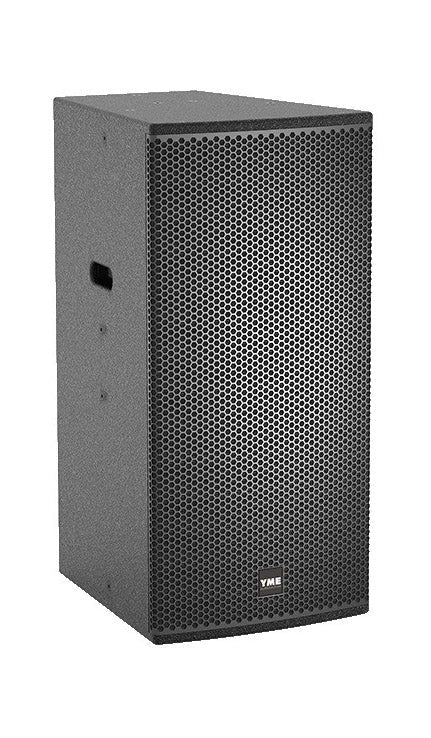

YME VP Series – Coaxial Point Source Speakers with Rotatable Horn

The VP series from YME Audiotechnik is designed for professional sound reinforcement in spaces where maximum detail, power and versatility are required. Thanks to its three‑way design and symmetrical driver configuration, VP excels at both live speech and rich musical programmes, delivering clean and even coverage throughout the venue. This series is ideal for theatres, clubs, corporate and sports events, as well as various installations where accurate sound coverage and seamless integration into existing infrastructure are critical.

Line array elements Click to expand
Parameter VP 24 VP 24X
Drivers 2 × 12″, 1 × 3″ 2 × 12″, 1 × 4″, 1 × 2.6″ (coaxial MF/HF)
SPL (dB) 136 dB 131 dB
Power 900 W 900 W LF, 110 W MF+HF
Impedance 8 Ω 8 Ω
Connection Full Range Bi‑amp
Dispersion 90° × 60° (rotatable horn) 90° × 60° (rotatable horn)
Acoustic design Bass‑reflex Coaxial bass‑reflex
Compatible frames for flying and ground‑stacking

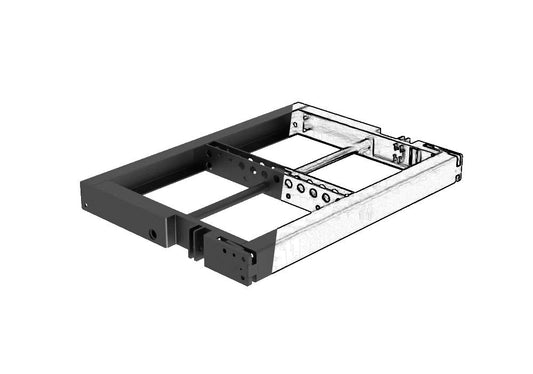

  • YME RG‑VP 24 (1 pc) – for flying the element
  • YME RG‑VP 24 (1 pc) + YME RGCP‑VP 24 (2 pcs) – connector bar for elements
  • YME RG‑VP 24 (1 pc) – for flying the element
  • YME RG‑VP 24 (1 pc) + YME RGCP‑VP 24 (2 pcs) – connector bar for elements

For low‑frequency extension, we recommend using iA series subwoofers

Recommended amplification Click to expand
Model Connection diagram
VP 24 VP 24 connection diagram
VP 24X VP 24X connection diagram

*Calculated for a 4-Ω cluster under parallel connection
**To obtain a preset for your system, contact your manager and send the specification

VP represents professionalism and unique style in sound. Every detail is aimed at creating a rich, expressive and clear sonic landscape. VP opens new horizons of expression, combining power, transparency and emotional depth so that every moment of an event is vivid and memorable. This system is designed for those who seek a flawless balance between impressive musicality and absolute control over sound.

Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
