CL SERIES – Installation line arrays with fixed angle

YME CL Series – Fixed‑Angle Line Arrays

The CL series from YME Audiotechnik comprises universal acoustic systems with a fixed curvature, created for high‑quality sound reinforcement at medium and large‑scale events. Compact yet powerful, the CL range suits theatres, clubs, concert halls, conferences and corporate gatherings. These systems let you shape a directed sound field without excess noise outside the listening area. They can be used either standalone or as part of a line array, delivering clear, detailed sound and excellent speech intelligibility even under challenging acoustic conditions.

Line array elements Click to expand

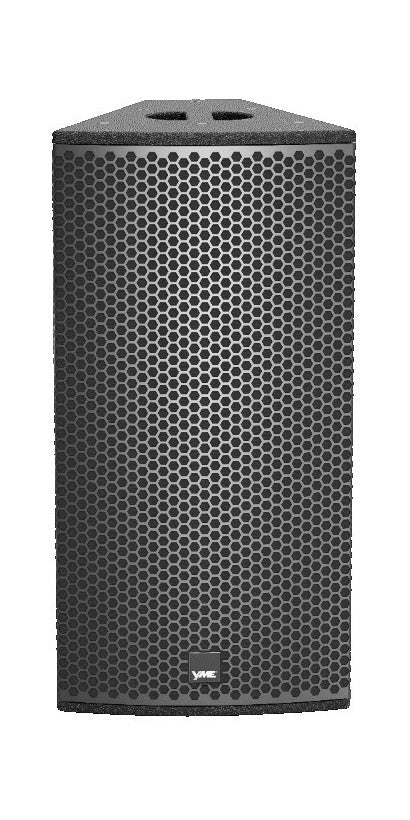

Parameter CL 114‑15 CL 114‑30
Drivers 1 × 14″, 1 × 3″ 1 × 14″, 1 × 3″
SPL (dB) 131 dB 131 dB
Power 580 W 580 W
Impedance 16 Ω 16 Ω
Connection Bi‑amp Bi‑amp
Dispersion 100° × 15° 100° × 30°
Compatible frames for flying and ground‑stacking

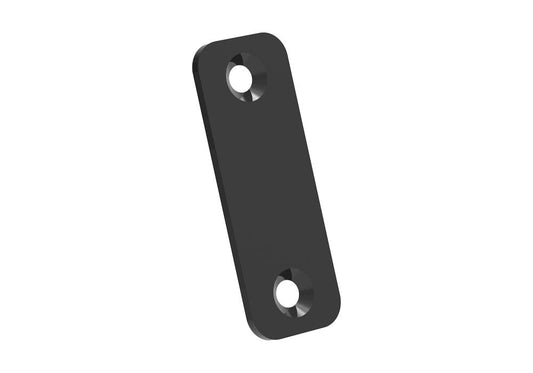

  • YME RG‑CL Side (2 pcs) – for flying the elements

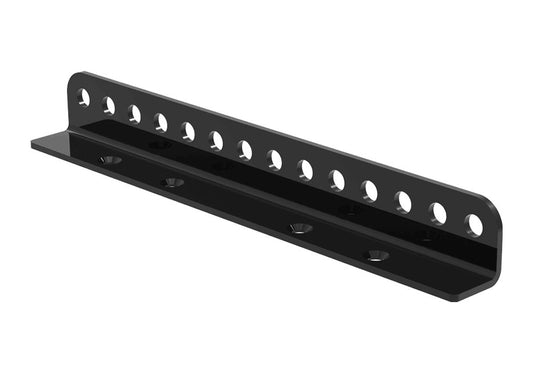

  • YME RG‑CL Top (4 pcs) – connector bar for elements
  • YME RG‑CL Side (2 pcs) – for flying the elements
  • YME RG‑CL Top (4 pcs) – connector bar for elements

For low‑frequency extension, we recommend using iA series subwoofers

Recommended amplification Click to expand
Model Connection diagram
CL 114-15 CL 114-15 connection diagram
CL 114-30 CL 114-30 connection diagram

*Calculated for a 4-Ω cluster under parallel connection
**To obtain a preset for your system, contact your manager and send the specification

CL embodies universality and high efficiency in sound. These acoustic systems offer clear, detailed audio with an emphasis on natural brightness and power, combining compactness with reliability and ease of installation. CL lets you create a perfectly balanced acoustic environment where every note and word stands out, delivering comfortable listening for each audience member. This series will be a reliable partner for professionals seeking high quality and stability in any situation.

Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
