YME IA Series – Installation Line Array Systems

The IA series from YME Audiotechnik is perfect for theatres, concert halls, sports arenas, clubs, churches and corporate venues where intelligibility and nuance are paramount. These modular line‑array modules deliver crystal‑clear speech and rich musical reinforcement. In large arenas they provide even, long‑range coverage without dead zones. Powerful subwoofers supply deep, controlled bass, while cardioid bass arrays focus low frequencies and eliminate discomfort in adjacent areas. In churches the system’s narrow, steerable beam corrects reverberation under high vaults, and in conference rooms it provides feedback‑resistant coverage across the entire space.

Line Array Elements Click to expand

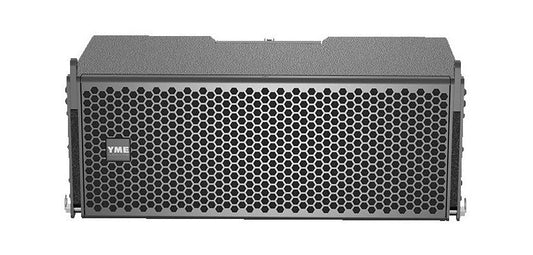

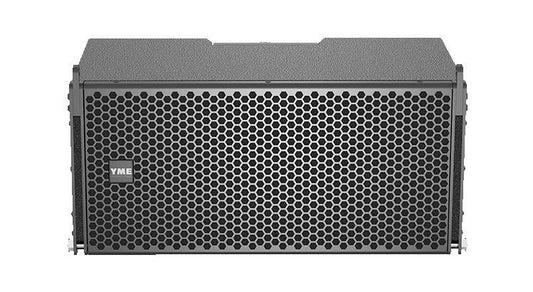

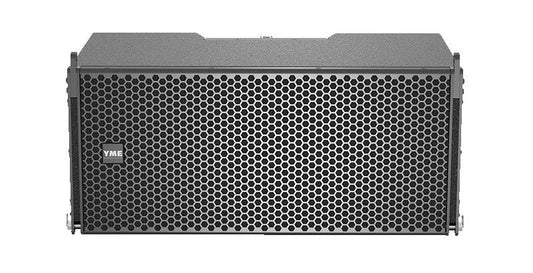

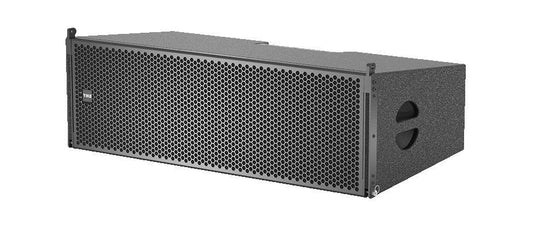

Parameter IA 209 IA 211 IA 211X IA 212XF IA 212XW
Drivers 2 × 9″, 1 × 3″ 2 × 11″, 1 × 3″ 2 × 11″, 1 × 8″, 2 × 3″ 2 × 12″, 4 × 6.5″, 2 × 3″ 2 × 12″, 4 × 6.5″, 2 × 3″
SPL (dB) 132 dB 133 dB 135 dB 136 dB 136 dB
Power 800 W 900 W 1200 W 1200 W 1200 W
Impedance 8 Ω 8 Ω 16 Ω 16 Ω 16 Ω
Connection Full Range Full Range Q‑Amp Q‑Amp Q‑Amp
Dispersion 100° × 10° 100° × 10° 80° × 10° 70° × 10° 100° × 10°
Compatible frames for flying and ground‑stacking
  • RG‑IA 209/211 – flying frame without subwoofer
  • RG‑IA 118B2 (1 pc) – ground stack with IA 118B
  • RG‑IA 118B2 (2 pcs) – flying with IA 118B
  • RG‑IA 209/211 – flying frame without subwoofer
  • RG‑IA 118B2 (1 pc) – ground stack with IA 118B
  • RG‑IA 118B2 (2 pcs) – flying with IA 118B
  • RG‑IA 211X – flying frame without subwoofer
  • RG‑IA 215B (1 pc) – ground stack with IA 215B
  • RG‑IA 215B (2 pcs) – flying with IA 215B
  • RG‑IA 212XF – flying frame without subwoofer
  • RG‑IA 212XW – flying frame without subwoofer
Subwoofers Click to expand

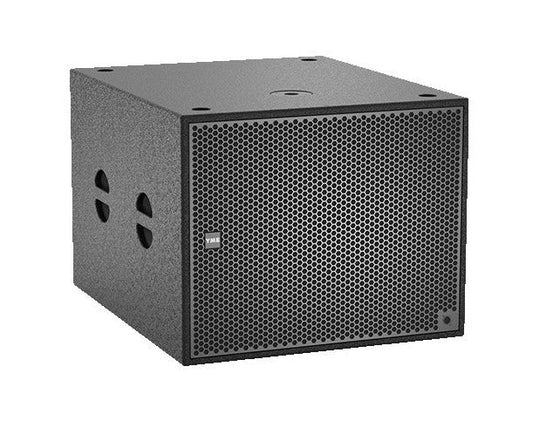

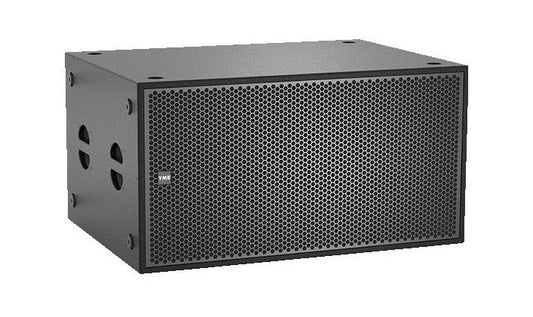

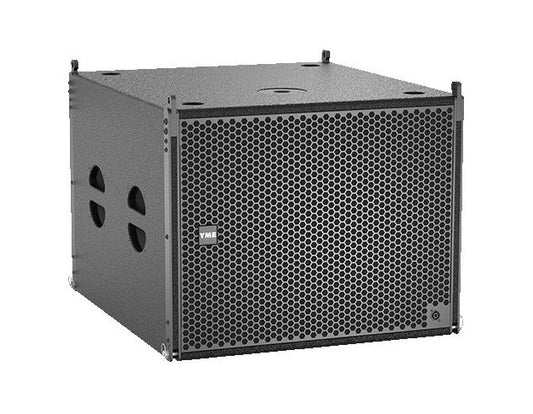

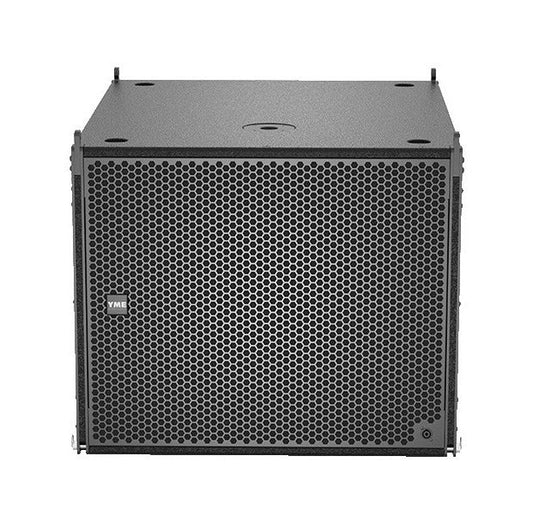

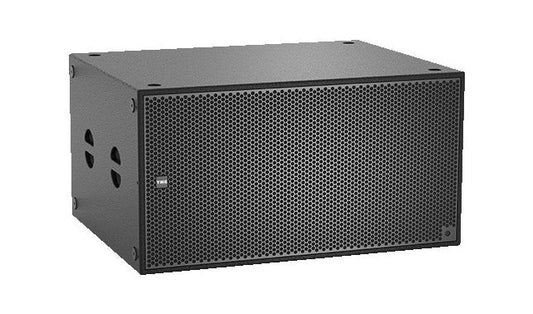

Parameter IA 118B2 IA 119B IA 215B IA 218B IA 219B
Drivers 1 × 18″ 1 × 19″ 2 × 15″ 2 × 18″ 2 × 19″
SPL (dB) 130 dB 136 dB 133 dB 136 dB 139 dB
Power 1000 W 1400 W 1400 W 1600 W 2800 W
Impedance 4 Ω 4 Ω 4 Ω 4 Ω 4 Ω
Acoustic design Sealed box Bass‑reflex horn Bass‑reflex horn Bass‑reflex Horn‑loaded band‑pass
Compatible frames for flying and ground‑stacking

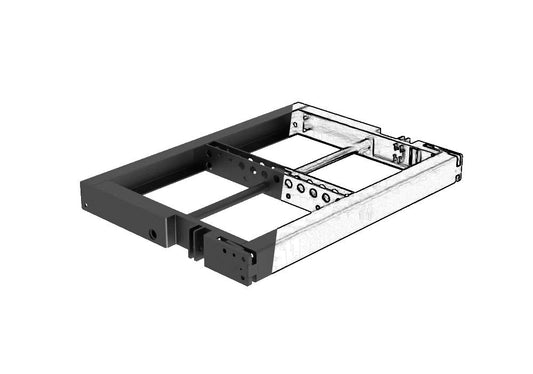

  • RG‑IA 118B2 – suspension frame for the subwoofer
  • RG‑IA 118B2 (1 pc) – ground stack with IA 209/211
  • RG‑IA 118B2 (2 pcs) – flying with IA 209/211
 Not designed for flying
  • RG‑IA 215B – suspension frame for the subwoofer
  • RG‑IA 215B (1 pc) – ground stack with IA 211X
  • RG‑IA 215B (2 pcs) – flying with IA 211X
 Not designed for flying Not designed for flying
Recommended amplification Click to expand
Model Connection diagram
IA 209 IA 209 connection diagram
IA 211 IA 211 connection diagram
IA 211X IA 211X connection diagram
IA 212XF IA 212XF connection diagram
IA 212XW IA 212XW connection diagram
IA 118B2 IA 118B2 connection diagram
IA 119B IA 119B connection diagram
IA 215B IA 215B connection diagram
IA 219B IA 219B connection diagram

The IA series makes flawless sound a reality: innovation, reliability and high‑end quality in a single solution. Every detail is designed to stir your audience’s emotions and transform any venue into a genuine stage. When you choose IA, you choose sound that inspires and stays with you forever.

Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
