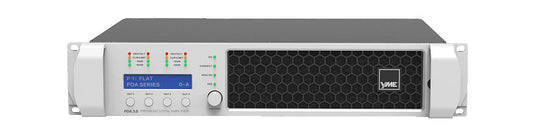

The PDA series from YME Audiotechnik is a line of next‑generation professional DSP amplifiers designed for controlling and processing complex multi‑channel acoustic systems in concert, touring and installation projects. Equipped with powerful 8‑channel Class D amplifiers (up to 4 × 2300 W or 4 × 2800 W per channel), an integrated 32‑bit SHARC DSP supporting FIR/IR filters with 96 kHz sampling, the PDA delivers maximum clarity, stability and tuning flexibility for the most demanding tasks. A universal PFC switch‑mode power supply, extensive network management capabilities, up to 24 presets and a multi‑channel audio interface make PDA‑based setups a reliable tool for system engineers, quickly adapting the sound system to unique venue requirements across formats and musical styles, while ensuring safety, compactness and ease of deployment.
Key characteristics
Click to expand
| Feature |
PDA 2.0 |
PDA 3.0 |
| Number of input channels |
4 analog XLR inputs, 2 AES/EBU inputs (AES3), 2 LAN inputs (RJ‑45) |
4 analog XLR inputs, 2 AES/EBU inputs (AES3), 2 LAN inputs (RJ‑45) |
| Number of output channels |
4 Speakon outputs (1+1−); 1 & 3 Speakon outputs (1+1−, 2+2−); 4 link XLR outputs |
4 Speakon outputs (1+1−); 1 & 3 Speakon outputs (1+1−, 2+2−); 4 link XLR outputs |
| Power per channel at 8 Ω |
1300 W |
1800 W |
| Power per channel at 4 Ω |
2200 W |
3500 W |
| Power per channel at 2 Ω |
2000 W |
3300 W |
| DSP |
SHARC 32‑bit floating point, 96 kHz sampling rate |
SHARC 32‑bit floating point, 96 kHz sampling rate |
PDA represents intelligent control and absolute command over sound for the most ambitious projects. The series’ innovative amplifiers ensure flawless operation of acoustic systems of any complexity, combining reliability, flexible tuning and rapid deployment. PDA opens new opportunities for creativity and confidence in the result, making sound powerful, precise and perfectly balanced for each event.
Need a complete solution for your project?
Get in touch and we will design the optimal configuration, perform acoustic calculations and prepare a complete equipment specification tailored to your project.
