ULTRA SERIES – Flagship touring line arrays



The ULTRA series from YME Audiotechnik consists of high‑performance modular line arrays and subwoofers designed for large concert halls, arenas, festivals and stadiums. These systems deliver powerful, even coverage with selectable dispersion angles of 70° or 110°, detailed sonic articulation and controllable deep bass. Thanks to robust construction and weatherproof finishing, they withstand challenging acoustic and climatic conditions. ULTRA modules integrate easily into professional touring rigs and corporate installations via the advanced DFM NetControl digital management platform, allowing rapid setup, scalability and stable sound on large venues.

Line array elements and subwoofer Click to expand

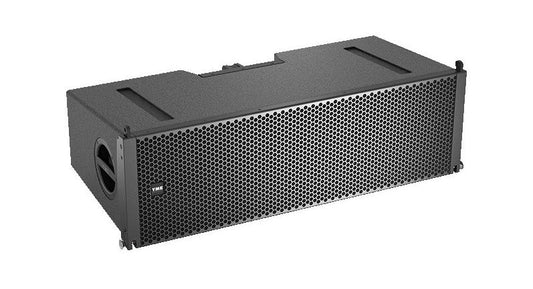

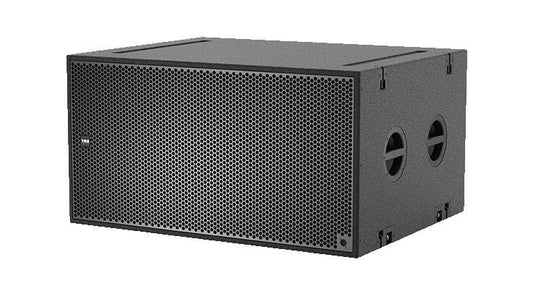

Parameter ULTRA 12F ULTRA 12W ULTRA SUB
Drivers 2 × 12″, 4 × 6.5″, 2 × 3″ 2 × 12″, 4 × 6.5″, 2 × 3″ 2 × 19″
SPL (dB) 137 dB 136 dB 142 dB
Power 1700 W 1700 W 2800 W
Impedance 8 Ω (HF 16 Ω) 8 Ω (HF 16 Ω) 4 Ω
Connection Q‑Amp Q‑Amp Full Range
Dispersion 70° × 10° 110° × 10° Omni
Acoustic design Bass‑reflex, horn phase plug Bass‑reflex, horn phase plug Horn‑loaded band‑pass
Compatible frames for flying and ground‑stacking

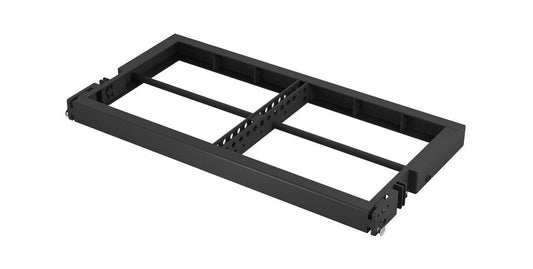

  • RG‑ULTRA 12 – flying frame without subwoofers
  • RG‑ULTRA 12 (1 pc) – ground stack with ULTRA SUB
  • RG‑ULTRA SUB (2 pcs) – flying with ULTRA SUB
  • RG‑ULTRA 12 – flying frame without subwoofers
  • RG‑ULTRA 12 (1 pc) – ground stack with ULTRA SUB
  • RG‑ULTRA SUB (2 pcs) – flying with ULTRA SUB
  • RG‑ULTRA SUB – suspension frame for the subwoofer
Additional rigging elements
  • RG‑ULTRA 12B – bracket for flexible flying angle adjustment
  • RG‑ULTRA/GT CB – transition frame for flying GT‑series elements
  • RG‑ULTRA 12B – bracket for flexible flying angle adjustment
  • RG‑ULTRA/GT CB – transition frame for flying GT‑series elements
 —
Recommended amplification Click to expand
Model Connection diagram
ULTRA 12F ULTRA 12F connection diagram
ULTRA 12W ULTRA 12W connection diagram
ULTRA SUB ULTRA SUB connection diagram

*Calculated for a 4-Ω cluster in parallel connection
**To obtain a preset for your system, contact your manager and send the specification

ULTRA lets every listener feel the power and clarity of sound, filling the space with the energy of a live performance. It’s the perfect choice for those who value truly impressive sound and uncompromising quality.
